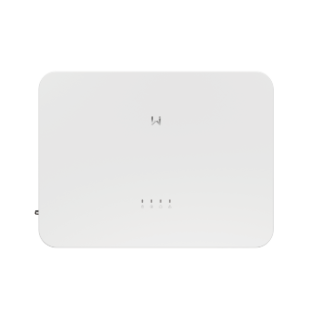

GoodWe SDT GW10K-SDT-30 10KW On-Grid Solar Inverter
The GoodWe SDT GW10K-SDT-30 is a highly efficient three-phase on-grid solar inverter, designed to meet the energy demands of residential and small commercial projects. Part of the SDT G3 Series, it offers impressive performance capabilities, robust safety features, and ease of installation.
Key Features
- Flexible Power Range: Available from 8KW to 30KW, making it suitable for various energy needs.
- 150% DC Oversizing: Optimizes energy harvesting by supporting extensive DC input capacity.
- 110% AC Overloading: Provides reliable performance even during high energy demand periods.
- Lightweight & Easy Installation: Streamlined design for quick and efficient setup.
- Three-Phase Energy Solution: Delivers balanced power for residential and small commercial applications.
Advanced Safety Features
- PV String Monitoring: Enables real-time monitoring of solar panel performance for optimized energy management.
- Anti-Islanding Protection: Ensures system safety during grid outages by preventing unwanted islanding.
- Input Reverse Polarity Protection: Safeguards against damage caused by incorrect wiring connections.
- Insulation Resistor Detection: Enhances safety by monitoring insulation integrity.
- Residual Current Monitoring Unit (RCMU): Detects and prevents electrical leakage.
- Output Over Current Protection: Protects against power surges, ensuring the safety of connected devices.
- Output Short Protection: Prevents damage from short circuits or faults in the system.
The GoodWe SDT GW10K-SDT-30 is the perfect choice for those seeking reliable, high-performance on-grid solar energy solutions for residential and small commercial installations.
SPECIFICATIONS
| Technical Data | GW10K- SDT-30 |
| Input | |
| Max. Input Voltage (V) | 1100 |
| MPPT Operating Voltage Range (V) | 140 ~ 1000 |
| Start-up Voltage (V) | 160 |
| Nominal Input Voltage (V) | 600 |
| Max. Input Current per MPPT (A) | 22 |
| Max. Short Circuit Current per MPPT (A) | 27.5 |
| Number of MPP Trackers | 2 |
| Number of Strings per MPPT | 1 |
| Output | |
| Nominal Output Power (W) | 10000 |
| Nominal Output Apparent Power (VA) | 10000 |
| Max. AC Active Power (W)*1 | 11000 |
| Max. AC Apparent Power (VA) | 11000 |
| Nominal Output Voltage (V) | 220 / 380, |
| Output Voltage Range (V) | 180 ~ 280 (according to local standard) |
| Nominal AC Grid Frequency (Hz) | 50 / 60 |
| AC Grid Frequency Range (Hz) | 45~ 55 / 55 ~65 |
| Max. Output Current (A)*2 | 16.7 |
| Power Factor | ~1 (Adjustable from to 0.8 leading to 0.8 lagging) |
| Max. Total Harmonic Distortion | <3% |
| Efficiency | |
| Max. Efficiency | 98.5% |
| European Efficiency | 98.0% |
| Protection | |
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Switch | Integrated |
| DC Surge Protection | Type III (Type II Optional) |
| AC Surge Protection | Type III (Type II Optional) |
| AFCI | Optional |
| Emergency Power Off | Optional |
| Rapid Shutdown | Optional |
| Remote Shutdown | Optional |
| PID Recovery | Optional |
| Power Supply at Night | Optional |
| General Data | |
| Operating Temperature Range (°C) | -30~ +60 |
| Relative Humidity | 0~100% |
| Max. Operating Altitude (m) | 4000 |
| Cooling Method | Natural Convection |
| User Interface | LED, LCD(Optional), WLAN + APP |
| Communication | RS485, WiFi, LAN or 4G or Bluetooth(Optional) |
| Weight (kg) | 14.7 |
| Dimension (W × H × D mm) | 491*392*210 |
| Noise Emission (dB) | <30 |
| Topology | Non isolated |
| Self-consumption at Night (W) | <1 |
| Ingress Protection Rating | IP66 |
| DC Connector | MC4 (4~6mm²) |
| AC Connector | OT terminal (Max. 10mm²) |
