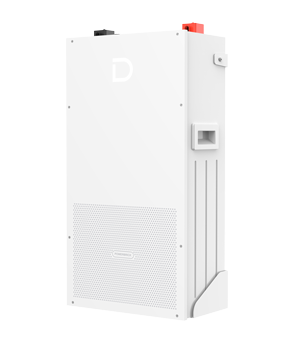

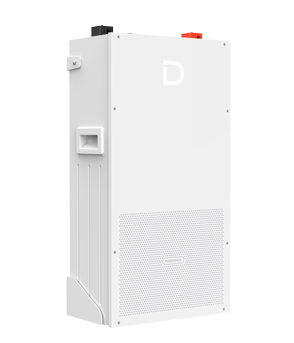

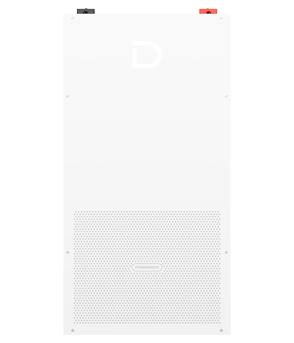

PowerBrick is a low-voltage product designed for household energy storage scenarios, with a stylish and elegant appearance. Featuring 280Ah long-cycle battery cores, it supports a maximum of 50 parallel units, and 14.3kWh~716.8kWh energy coverage, providing a safe, reliable, intelligent, and friendly experience.
Key Features
- 8000 Life Cycles: Ensures long-lasting performance with up to 6000 charge/discharge cycles.
- Rated Charge/Discharge (0.5C/0.5C): Efficient energy storage and release for reliable operation.
- Max Charge/Discharge (0.75C/0.75C): Handles peak power demands effectively.
- 95% Depth of Discharge (DOD): Utilize full battery capacity without compromising lifespan.
- Flexible Installation: Supports both wall mount and rack mount options for versatile setups.
- 7-Year Warranty: Backed by a comprehensive 7-year warranty for peace of mind.
- LiFePO4 Battery Type: Provides superior safety, longevity, and performance.
- Quick Plug & Unplug DC Terminal: Simplifies installation and maintenance with hassle-free connections.
- Complete Accessories: Includes communication cables and DC wires for a seamless setup.
- Inverter Compatibility: Works with leading brands like Inverex, Solar Max, Knox, Solis, and Growwatt (CAN, RS485, RS232).
Specifications
| Model | PowerBrick |
| Nominal Energy | 14.336kWh |
| Usable Energy (DOD) | 95% |
| Rated Voltage | 51.2V |
| Charge/Discharge Cut Off Voltage | 44.8V~55.2V |
| Roundtrip Efficiency | >98% |
| Rated Charge/Discharge Current | 140A/140A |
| Max. Charge/Discharge Current | 200A/200A |
| Communication Interface | CAN / RS485 / RS232 |
| Scalability | Up to. 50 in parallel |
| Installation Location | Indoor |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10% to 90%, non-condensation |
| Dimensions | 435*233*857mm |
| Weight | 114 kg |
| Enclosure Fir Protection | Built In Aerosol Fire Extinguisher |
| Wifi | Built In Wifi Module |
| Compatible Inverters | SMA/Schneider/Victron Energy/Ingeteam/Solis/Goodwe/Growatt/Solplanet/Luxpower/DEYE/Apsystem etc. |
