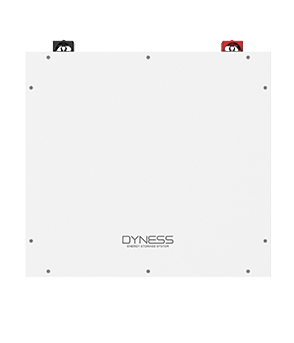

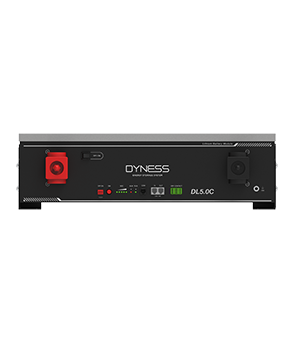

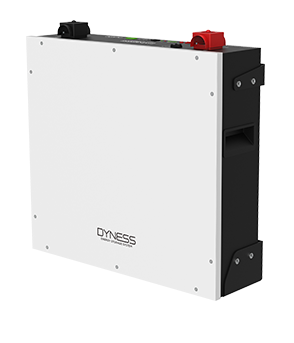

DL5.0C is designed for residential and small commercial applications, with up to 50 units in parallel and an energy range from 5.12 kWh to 256 kWh. It supports 1C discharge rate. With high cycle times and a long lifespan, it ensures worry-free electricity consumption.
Key Features
- 6000 Life Cycles: Ensures long-lasting performance with up to 6000 charge/discharge cycles.
- Rated Charge/Discharge (0.5C/1C): Efficient energy storage and release for reliable operation.
- Max Charge/Discharge (1C/1C): Handles peak power demands effectively.
- 90% Depth of Discharge (DOD): Utilize full battery capacity without compromising lifespan.
- Flexible Installation: Supports both wall mount and rack mount options for versatile setups.
- 7-Year Warranty: Backed by a comprehensive 7-year warranty for peace of mind.
- LiFePO4 Battery Type: Provides superior safety, longevity, and performance.
- Quick Plug & Unplug DC Terminal: Simplifies installation and maintenance with hassle-free connections.
- Complete Accessories: Includes communication cables and DC wires for a seamless setup.
- Inverter Compatibility: Works with leading brands like Inverex, Solar Max, Knox, Solis, and Growwatt (CAN, RS485, RS232).
Specifications
| Model | DL5.0C |
| Nominal Energy | 5.12kWh |
| Usable Energy (DOD) | 90% |
| Rated Voltage | 51.2V |
| Charge/Discharge Cut Off Voltage | 44.8V~55.2V |
| Roundtrip Efficiency | >98% |
| Rated Charge/Discharge Current | 50A/50A |
| Max. Charge/Discharge Current | 100A/100A |
| Communication Interface | CAN / RS485 / RS232 |
| Scalability | Up to. 50 in parallel |
| Installation Location | Indoor |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10% to 90%, non-condensation |
| Dimensions | 558*545*150 mm |
| Weight | 49.9 kg |
| Enclosure Protection Rating | IP20 |
| Cooling | Natural Convection |
| Compatible Inverters | SMA/Schneider/Victron Energy/Ingeteam/Solis/Goodwe/Growatt/Solplanet/Luxpower/DEYE/Apsystem etc. |
